Multiscene Pure Copper Welding Machine Cable Heatproof Anti
Freezing

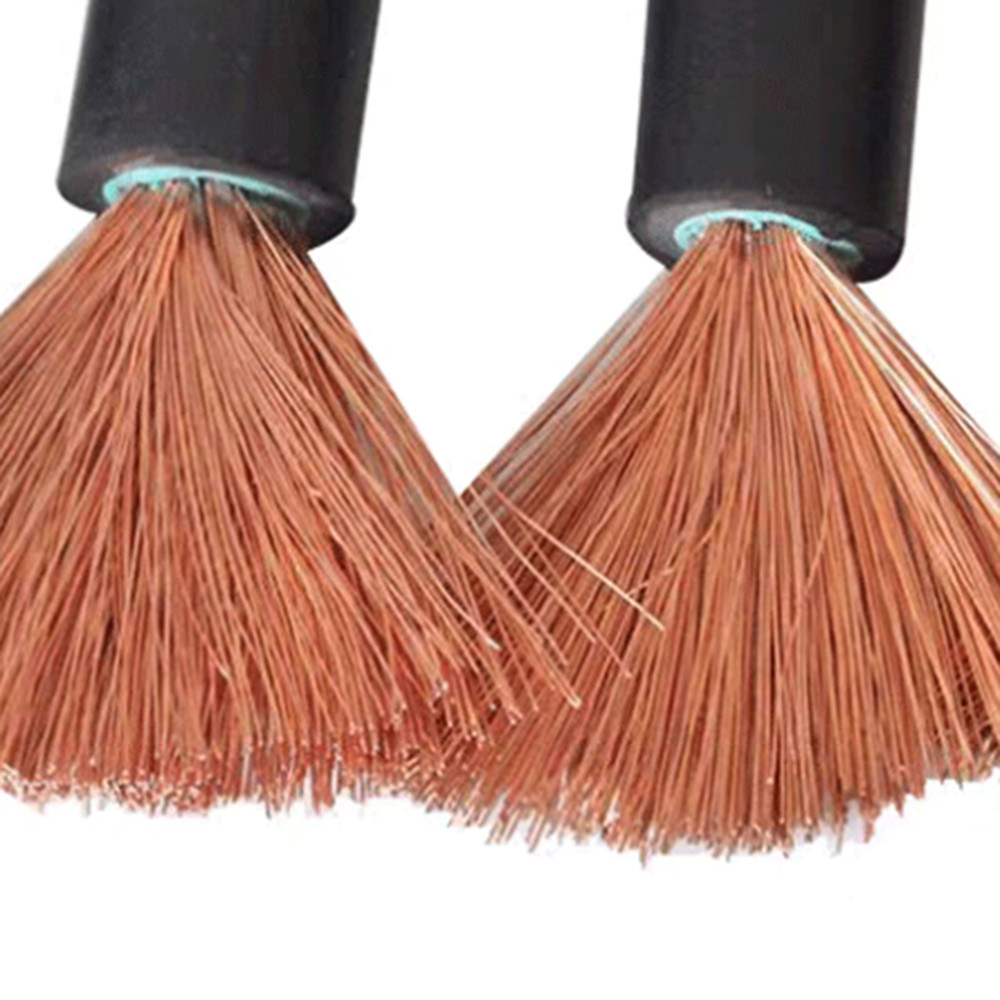

Pure copper welding wire welding wire antifreeze wear-resistant
electric welding machine special cable single core cable
The electric welding machine cable is a neoprene mixture sheath
with heat resistance, oil resistance and non flame retardancy. This product is suitable for secondary side wiring and connection
of electric welding machines with AC voltage not exceeding 200V and
pulsating DC peak 400V. The maximum operating temperature of the cable is 65 ℃. The electric welding machine cable is particularly soft and has
good bending performance. The sheath material adopts natural rubber or neoprene mixture,
which can be applied to different occasions
Nom.
Area
mm2 | Max. Dia.
of wire
mm | Nom.
Cover
Thickness
mm | Average O.D. mm | Maximum DC
Resistance at 20℃
Ω/km |
Min. | Max. | Tinned copper | Un tinned copper |
10 | 0.21 | 2.0 | 7.7 | 9.7 | 1.95 | 1.91 |
16 | 2.0 | 8.8 | 11.0 | 1.24 | 1.21 |
25 | 2.0 | 10.1 | 12.7 | 0.795 | 0.780 |
35 | 2.0 | 11.4 | 14.2 | 0.565 | 0.554 |
50 | 2.2 | 13.2 | 16.5 | 0.393 | 0.386 |
70 | 2.4 | 15.3 | 19.2 | 0.277 | 0.272 |
95 | 2.6 | 17.1 | 21.4 | 0.210 | 0.206 |
120 | 0.51 | 2.8 | 19.2 | 24.0 | 0.164 | 0.161 |
150 | 3.0 | 21.1 | 26.4 | 0.132 | 0.129 |
185 | 3.2 | 23.1 | 28.9 | 0.108 | 0.106 |
Company introduction
We are a wire factory located in Zhejiang Haiyan, China.
We have professional, high quality machines and testing equipment.
Main business Low voltage power cables, civil wires, audio cables,
fire alarm cables,Control cable and other more than 30 series of
products. The company's service purpose is Integrity-based,
customer satisfaction for the principle. We hope that in the near
future To work with you.
1. Q: Are you a factory or trading company?
A: We’re a factory locates in Zhejiang Province, which integrates
R&D, manufacture and sales of various wires and cables
2. Q: What are your main products?
A: AAC/AAAC/ACSR/ACAR/AACSR/ACSR-AS/ACSS/ACSS-AW/ACS/GSW conductor,
ABC cable, power cable, control cable, concentric
cable,commonelectric wire, etc
3. Q: Can we have our logo or company name to be printed on your
products or the package?
A: Yes, OEM and ODM are both acceptable for us.
4. Q: Do you provide samples? Free or not?
A: Yes, we’d like to provide free samples for your reference, but
won’t bear the express fees.
5. Q: How long is your warranty period?
A: 1 year, and we promise to return or replace the cables within
one year if any quality problem is found.
