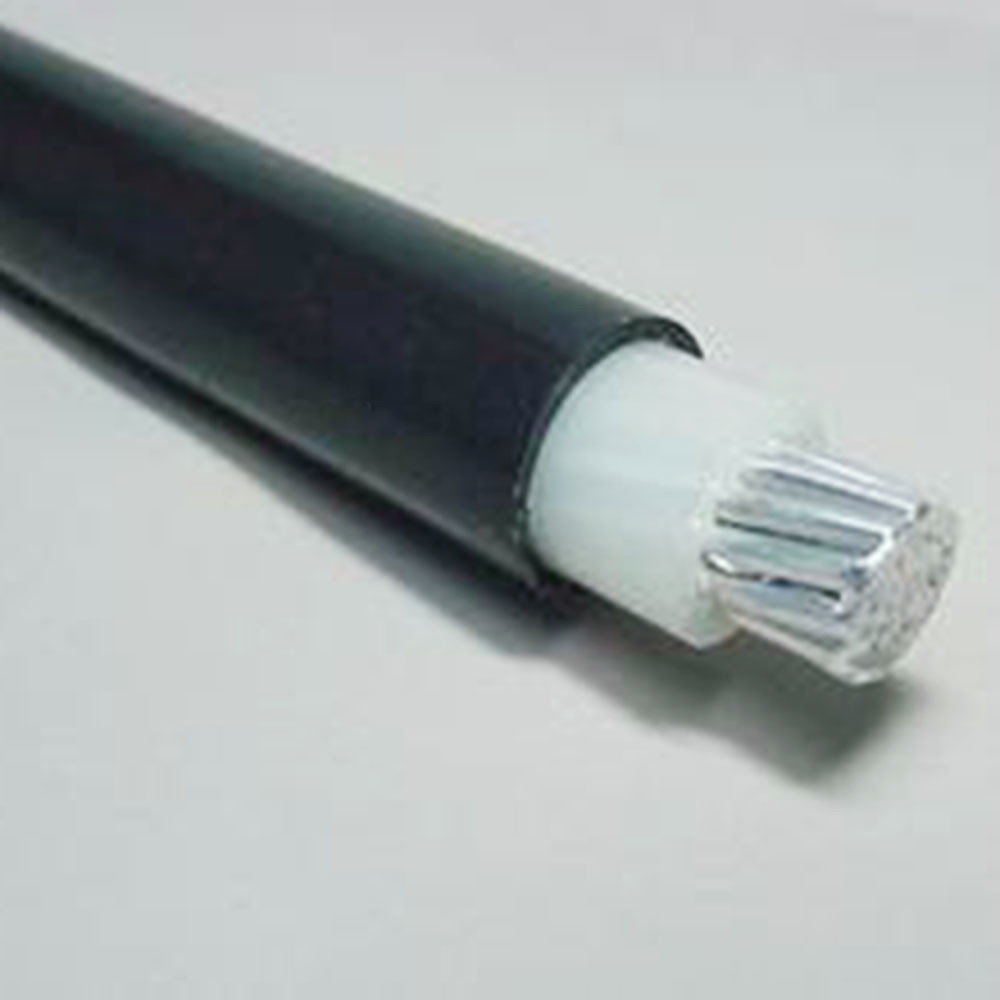

Factory direct aluminum wire overhead insulated cable yjlv single
core PVC sheathed armored cable
Conductor:
1. Aluminum Wire, 1350-H19 for Electrical Purposes.
2. Aluminum Conductors, Concentric-Lay-Stranded.
3. Aluminum Conductor, Concentric-Lay-Stranded, Coated Steel
Reinforced (ACSR).
4. Concentric-Lay-Stranded 6201-T81 Conductors.
5. Compressed Round Stranded Aluminum Conductors Using Single Input
Wire.
Insulation: PVC, XLPE, PE
overhead insulated cable Cond. Al 3x50+1x50mm2, Aislados aerial
bundle cable IEC60502-1 Standards:
GB/T 12527-2008, IEC60502,
Rated voltage: 0.6/1kV
Relative manufacturing standards: IEC61089, ASTM B231, ASTM B232,
BS215, DIN48201, DIN48204.
We can also manufacture ABC cable according to customer's special
requirements.
| Cable Size | Current Rating (Note 1) | Short Circuit Rating (Note 2) | Conductor Resistance @ 20°C | Conductor Resistance (ac) @ 80°C | Self Supporting System | Supporting Core System |
| Induction Reactance @ 50Hz | Impendance
(z) @ 50Hz at 80°C | Supporting Core Size | Induction Reactance @ 50Hz | Impendance
(z) @ 50Hz at 80°C |
| mm² | (A) | kA | ( /km) | ( /km) | ( /km) | ( /km) | mm² | ( /km) | ( /km) |
| 25 | 105 | 2.3 | 1.200 | 1.490 | 0.096 | 1.493 | 54.6 | 0.101 | 1.493 |
| 35 | 144 | 3.2 | 0.868 | 1.078 | 0.096 | 1.082 | 54.6 | 0.097 | 1.082 |
| 50 | 183 | 4.6 | 0.641 | 0.796 | 0.090 | 0.801 | 54.6 | 0.089 | 0.801 |
| 70 | 228 | 6.4 | 0.443 | 0.550 | 0.089 | 0.557 | 54.6 | 0.086 | 0.557 |
| 95 | 277 | 8.5 | 0.320 | 0.397 | 0.086 | 0.406 | 54.6 | 0.081 | 0.405 |
| 120 | 322 | 11.0 | 0.253 | 0.314 | 0.084 | 0.325 | 70 | 0.079 | 0.324 |
| 150 | 350 | 13.8 | 0.206 | 0.256 | 0.082 | 0.269 | 95 | 0.079 | 0.268 |
Company introduction
We are a wire factory located in Zhejiang Haiyan, China.
We have professional, high quality machines and testing equipment.
Main business Low voltage power cables, civil wires, audio cables,
fire alarm cables,Control cable and other more than 30 series of
products. The company's service purpose is Integrity-based,
customer satisfaction for the principle. We hope that in the near
future To work with you.
1. Q: Are you a factory or trading company?
A: We’re a factory locates in Zhejiang Province, which integrates
R&D, manufacture and sales of various wires and cables
2. Q: What are your main products?
A: AAC/AAAC/ACSR/ACAR/AACSR/ACSR-AS/ACSS/ACSS-AW/ACS/GSW conductor,
ABC cable, power cable, control cable, concentric
cable,commonelectric wire, etc
3. Q: Can we have our logo or company name to be printed on your
products or the package?
A: Yes, OEM and ODM are both acceptable for us.
4. Q: Do you provide samples? Free or not?
A: Yes, we’d like to provide free samples for your reference, but
won’t bear the express fees.
5. Q: How long is your warranty period?
A: 1 year, and we promise to return or replace the cables within
one year if any quality problem is found.
