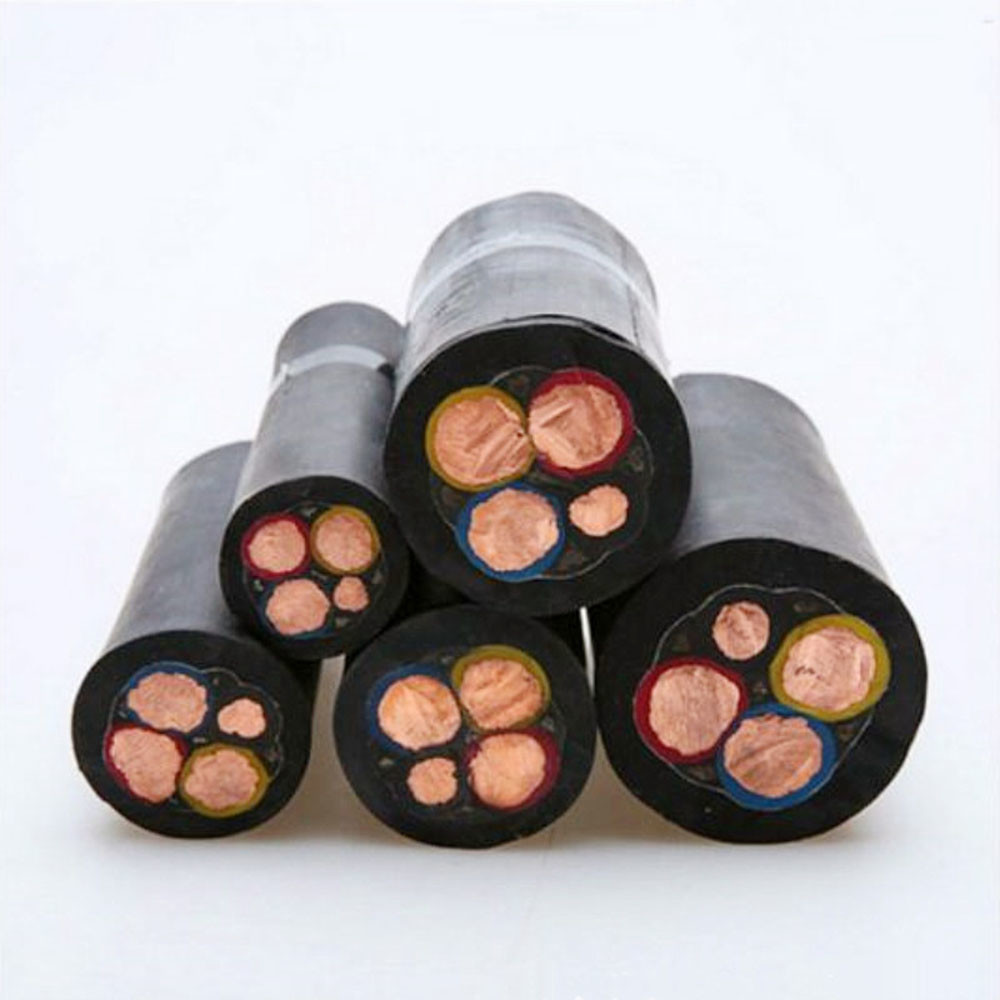

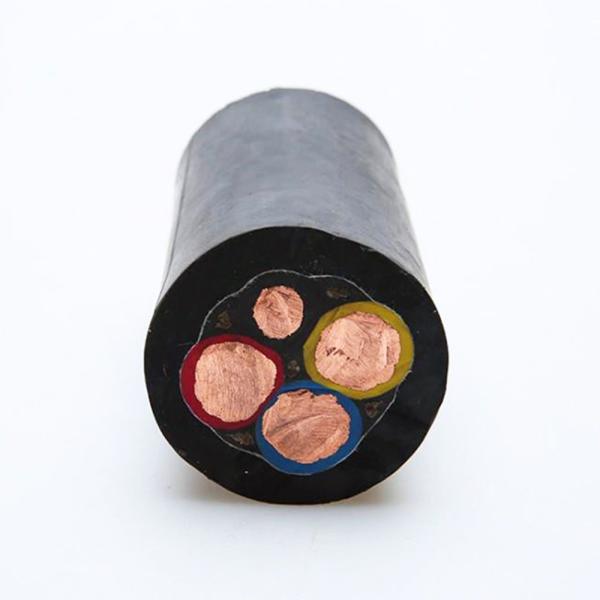

YC rubber sheathed cable copper core heavy rubber sheathed flexible
cable welding wire and cable
Standard:
The rubber sheathed flexible cable with rated voltage up to
450/750V is in accordance with the standard GB5013-1997.
Rubber insulated flexible wire and cable with rated voltage up to
450/750V is in accordance with the standard JB8735-1998.
Specific Property for Using:
The long-time permissible working temperature of conductor is 60℃.
The product is used for the drive devices, household electric
instruments, all kinds of portable electrical equipment and
electromotive tools at A.C rated voltage U./U up to and including
450/750V.
Introduction:
Rubber sheathed cables are widely used in various electrical
equipment, such as portable power cords for household appliances,
electrical machinery, electrical equipment and appliances, and can
be used in indoor or outdoor environmental conditions.
According to the mechanical external force of the cable, the
product structure is divided into three categories: light, medium
and heavy, and there is also an appropriate connection in the
section. Generally, light rubber-sheathed cables are used in
household electrical appliances and small electric equipment,
requiring softness, lightness, and good bending performance.
In addition to industrial use of medium-sized rubber sheathed
cables. It is widely used in the electrification of agriculture.
Heavy-duty cables are used in occasions such as port machinery,
searchlights, and large-scale water-powered irrigation and drainage
stations for household businesses. This type of product has good
versatility, complete series specifications, good performance and
stability.
Cross-Sectional
Area mm2 | Number diameter of core | Overall Diameter | Max.D.C resistance
of at 20℃
MΩ/km | Approx Weight
(kg/km) |
| min | max | Copper | Tinned-Copper | YZ | YZW |
| 2x0.75 | 24/0.2 | 5.7 | 7.4 | 26 | 26.7 | 81.7 | 89.6 |
| 2x1 | 32/0.2 | 6.1 | 8 | 19.7 | 20 | 123 | 138 |
| 2x1.5 | 16/0.25 | 7.6 | 9.8 | 13.3 | 13.7 | 185 | 196 |
| 2x2.5 | 28/0.25 | 9 | 11.6 | 7.98 | 8.21 | 234 | 252 |
| 2x4 | 56/0.3 | 10.6 | 13.7 | 4.95 | 5.09 | 255 | 276 |
| 2x6 | 84/0.3 | 11.8 | 15.1 | 3.3 | 3.39 | 356 | 371 |
| 3x0.75 | 24/0.2 | 6.2 | 8.1 | 26 | 26.7 | 97.4 | 105 |
| 3x1 | 32/0.2 | 6.5 | 8.5 | 19.7 | 20 | 112 | 126 |
| 3x1.5 | 16/0.25 | 8 | 10.4 | 13.3 | 13.7 | 156 | 174 |
| 3x2.5 | 28/0.25 | 9.6 | 12.4 | 7.98 | 8.21 | 204 | 2019 |
| 3x4 | 56/0.3 | 11.3 | 14.5 | 4.95 | 5.09 | 285 | 302 |
| 3x6 | 84/0.3 | 12.6 | 16.1 | 3.3 | 3.39 | 398 | 423 |
| 4x0.75 | 24/0.2 | 6.8 | 8.8 | 26 | 26.7 | 117 | 125 |
| 4x1 | 32/0.2 | 7.1 | 9.3 | 19.7 | 20 | 134 | 148 |
| 4x1.5 | 16/0.25 | 9 | 11.6 | 13.3 | 13.7 | 186 | 206 |
| 4x2.5 | 28/0.25 | 10.7 | 13.8 | 7.98 | 8.21 | 255 | 270 |
| 4x4 | 56/0.3 | 12.7 | 13.8 | 4.95 | 5.09 | 356 | 374 |
| 4x6 | 84/0.3 | 14 | 17.9 | 3.3 | 3.39 | 465 | 482 |
Company introduction
We are a wire factory located in Zhejiang Haiyan, China.
We have professional, high quality machines and testing equipment.
Main business Low voltage power cables, civil wires, audio cables,
fire alarm cables,Control cable and other more than 30 series of
products. The company's service purpose is Integrity-based,
customer satisfaction for the principle. We hope that in the near
future To work with you.
1. Q: Are you a factory or trading company?
A: We’re a factory locates in Zhejiang Province, which integrates
R&D, manufacture and sales of various wires and cables
2. Q: What are your main products?
A: AAC/AAAC/ACSR/ACAR/AACSR/ACSR-AS/ACSS/ACSS-AW/ACS/GSW conductor,
ABC cable, power cable, control cable, concentric
cable,commonelectric wire, etc
3. Q: Can we have our logo or company name to be printed on your
products or the package?
A: Yes, OEM and ODM are both acceptable for us.
4. Q: Do you provide samples? Free or not?
A: Yes, we’d like to provide free samples for your reference, but
won’t bear the express fees.
5. Q: How long is your warranty period?
A: 1 year, and we promise to return or replace the cables within
one year if any quality problem is found.
