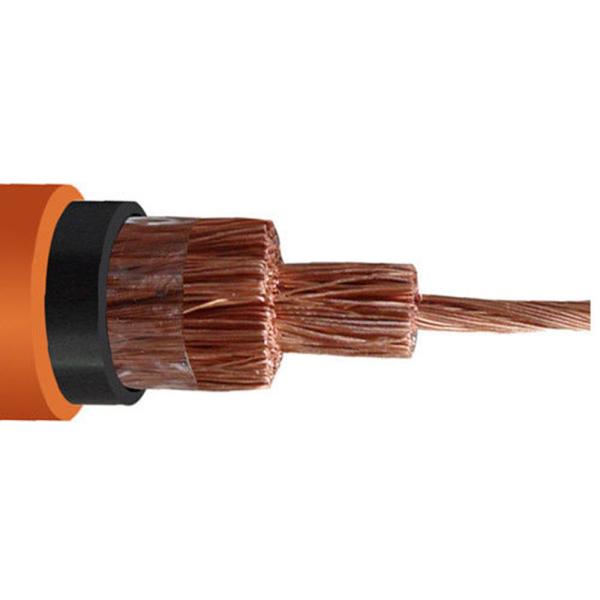

YZ / YC / JHS rubber sheathed cable waterproof 2-core 3-core 4-core
1.5/2.5/4/6/10 square rubber cord
Use characteristics:
● Power frequency rated voltage U0/U is 380/660V, 660/1140V,
1.9/3.3kv, 3.6/6kv, 6/10KV, 8.7/10KV, 300/500V.
● Maximum allowable working temperature of cable conductor: 65℃ 90℃
● The minimum allowable working environment temperature of the
cable is -35℃
● Cable bending radius: not more than 6 times the outer diameter of
the cable.
Scope of application:
Mine rubber-sheathed flexible cables are suitable for mobile laying
cables for mining power plants with power frequency rated voltage
U0/U 8.7/10KV and below.
Product Standards:
This product is produced according to GB/T12972-2008 "Rubber
sheathed flexible cables for mines", MT818-2009 "Flame retardant
cables for coal mines", and can also be in accordance with the
International Electrotechnical Commission recommended standards
IEC, British standards, German standards and the United States
according to user needs Standard production.
Cross-Sectional
Area mm2 | Number diameter of core | Overall Diameter | Max.D.C resistance
of at 20℃
MΩ/km | Approx Weight
(kg/km) |
| min | max | Copper | Tinned-Copper | YZ | YZW |
| 2x0.75 | 24/0.2 | 5.7 | 7.4 | 26 | 26.7 | 81.7 | 89.6 |
| 2x1 | 32/0.2 | 6.1 | 8 | 19.7 | 20 | 123 | 138 |
| 2x1.5 | 16/0.25 | 7.6 | 9.8 | 13.3 | 13.7 | 185 | 196 |
| 2x2.5 | 28/0.25 | 9 | 11.6 | 7.98 | 8.21 | 234 | 252 |
| 2x4 | 56/0.3 | 10.6 | 13.7 | 4.95 | 5.09 | 255 | 276 |
| 2x6 | 84/0.3 | 11.8 | 15.1 | 3.3 | 3.39 | 356 | 371 |
| 3x0.75 | 24/0.2 | 6.2 | 8.1 | 26 | 26.7 | 97.4 | 105 |
| 3x1 | 32/0.2 | 6.5 | 8.5 | 19.7 | 20 | 112 | 126 |
| 3x1.5 | 16/0.25 | 8 | 10.4 | 13.3 | 13.7 | 156 | 174 |
| 3x2.5 | 28/0.25 | 9.6 | 12.4 | 7.98 | 8.21 | 204 | 2019 |
| 3x4 | 56/0.3 | 11.3 | 14.5 | 4.95 | 5.09 | 285 | 302 |
| 3x6 | 84/0.3 | 12.6 | 16.1 | 3.3 | 3.39 | 398 | 423 |
| 4x0.75 | 24/0.2 | 6.8 | 8.8 | 26 | 26.7 | 117 | 125 |
| 4x1 | 32/0.2 | 7.1 | 9.3 | 19.7 | 20 | 134 | 148 |
| 4x1.5 | 16/0.25 | 9 | 11.6 | 13.3 | 13.7 | 186 | 206 |
| 4x2.5 | 28/0.25 | 10.7 | 13.8 | 7.98 | 8.21 | 255 | 270 |
| 4x4 | 56/0.3 | 12.7 | 13.8 | 4.95 | 5.09 | 356 | 374 |
| 4x6 | 84/0.3 | 14 | 17.9 | 3.3 | 3.39 | 465 | 482 |
