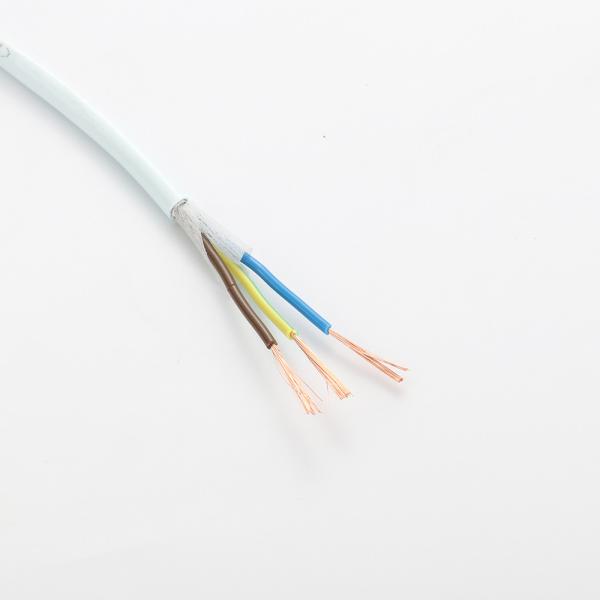

High quality oxygen free copper 3 * 1.5mm PVC sheathed insulated
wire and equipment electrical cable
Product Specification:
Keeping working temperature under 70 centifree for long-rang
operation.
Application:
Widely used as connectors of driving, lighting, electric equipments
, instrument and telecommunication equipments
General purpose indoor and outdoor, electrical tools, washing
machines, and vacuum cleaners etc.
- Product Name: RVV cable, RVV wire and cable
- Rated voltage: 300V / 500V.
- Conductor: stranded copper conductor
- Insulation: polyvinyl chloride mixture (PVC).
- Sheath: flexible polyvinyl chloride mixture (PVC)
- Number of cores: 2-5 cores, 7-36 cores (products outside CCC
catalogue, without CCC certification).
- Sectional area: 0.75-2.5mm & sup2;, 0.5,2.5-35mm²
(products outside CCC catalogue, no CCC certification).
- Test voltage: 2000V, 5min.
- Insulation resistance: > 200m Ω × KM.
- Service temperature: - 30 ~ + 70 ℃.
- Package specification: 100M, 500m, 1000m.
- Purpose: it is mainly used in power line, control line and signal
transmission for electrical appliances, instruments, electronic
equipment and automation devices. Specifically, it can be used in
anti-theft alarm system, building intercom system, etc.
| Specification and technical data of 300/500V wire | | Cross-sectional area | Number of roots/diameter | Outer diameter | Conductor resistance at 20℃ | | 2*0.5 | 2*16/0.2 | 5.3 | 39 | | 2*0.75 | 2*24/0.2 | 6.5 | 26 | | 2*1.0 | 2*32/0.2 | 6.7 | 19.5 | | 2*1.5 | 2*30/0.25 | 7.7 | 13.3 | | 2*2.5 | 2*49/0.25 | 9.5 | 7.98 | | 2*4.0 | 2*56/0.3 | 11.2 | 4.95 | | 2*6.0 | 2*84/0.3 | 13.5 | 3.3 | | 3*0.5 | 3*16/0.2 | 5.6 | 39 | | 3*0.75 | 3*24/0.2 | 6.8 | 26 | | 3*1.0 | 3*32/0.2 | 7.2 | 19.5 | | 3*1.5 | 3*30/0.25 | 8.4 | 13.3 | | 3*2.5 | 3*49/0.25 | 10.3 | 7.98 | | 3*4.0 | 3*56/0.3 | 12.2 | 4.95 | | 3*6.0 | 3*84/0.3 | 13.2 | 3.3 | | 4*0.75 | 4*24/0.2 | 7.5 | 26 | | 4*1.0 | 4*32/0.2 | 8.1 | 19.5 | | 4*1.5 | 4*30/0.25 | 9.5 | 13.3 | | 4*2.5 | 4*49/0.25 | 11.3 | 7.98 | | 4*4.0 | 4*56/0.3 | 13.2 | 4.95 | | 4*6.0 | 4*84/0.3 | 15 | 3.3 | | 5*0.75 | 5*24/0.2 | 8.4 | 26 | | 5*1.0 | 5*32/0.2 | 8.8 | 19.5 | | 5*1.5 | 5*30/0.25 | 10.5 | 13.3 | | 5*2.5 | 5*49/0.25 | 12.6 | 7.98 | | 5*4.0 | 5*56/0.3 | 14.9 | 4.95 | | 5*6.0 | 5*84/0.3 | 16.4 | 3.3 |
|
       |
about us
We are a wire factory located in Zhejiang Haiyan, China.
We have professional, high quality machines and testing equipment.
Main business Low voltage power cables, civil wires, audio cables,
fire alarm cables,Control cable and other more than 30 series of
products.
The company's service purpose is Integrity-based, customer
satisfaction for the principle.
We hope that in the near future To work with you.
1. Q: Are you a factory or trading company?
A: We’re a factory locates in Zhejiang Province, which integrates
R&D, manufacture and sales of various wires and cables
2. Q: What are your main products?
A: AAC/AAAC/ACSR/ACAR/AACSR/ACSR-AS/ACSS/ACSS-AW/ACS/GSW conductor,
ABC cable, power cable, control cable, concentric
cable,commonelectric wire, etc
3. Q: Can we have our logo or company name to be printed on your
products or the package?
A: Yes, OEM and ODM are both acceptable for us.
4. Q: Do you provide samples? Free or not?
A: Yes, we’d like to provide free samples for your reference, but
won’t bear the express fees.
5. Q: How long is your warranty period?
A: 1 year, and we promise to return or replace the cables within
one year if any quality problem is found.
