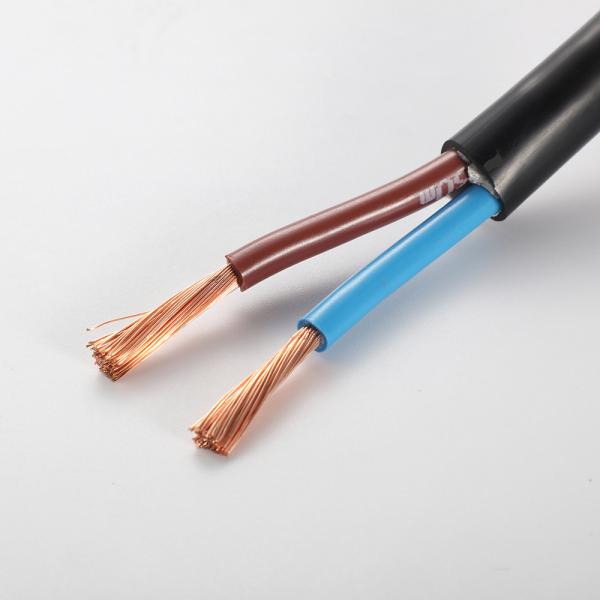

Spot high-quality oxygen free copper 2-core round wire PVC
insulated sheath cable
Working voltage and temperature:
H07RN-F model rated voltage U0/U IS 450/750V
H05RN-F model rated voltage U0/U IS 300/500V
H05RR-F model rated voltage U0/U IS 300/500V
Long time allow working temperature of wire core cant be higher
than 60C
H07RN-F Cable Construction:
- Conductor: Stranded Bare Copper acc. to IEC 60228, EN 60228, VDE
0295, class 5
- Insulation: Synthetic Rubber, EI4 acc. to DIN VDE 0282 part 1 + HD
22.1
- Conductor Color Coding: acc. to HD 308 (VDE 0293-308)
- Conductor Stranding: from 2 conductors stranded in layers
- Jacket: Synthetic Rubber, EM2 acc. to DIN VDE 0282 part 1 + HD 22.1
- Jacket Color: Black
- Product Name: RVV cable, RVV wire and cable
- Rated voltage: 300V / 500V.
- Conductor: stranded copper conductor
- Insulation: polyvinyl chloride mixture (PVC).
- Sheath: flexible polyvinyl chloride mixture (PVC)
- Number of cores: 2-5 cores, 7-36 cores (products outside CCC
catalogue, without CCC certification).
- Sectional area: 0.75-2.5mm & sup2;, 0.5,2.5-35mm²
(products outside CCC catalogue, no CCC certification).
- Test voltage: 2000V, 5min.
- Insulation resistance: > 200m Ω × KM.
- Service temperature: - 30 ~ + 70 ℃.
- Package specification: 100M, 500m, 1000m.
- Purpose: it is mainly used in power line, control line and signal
transmission for electrical appliances, instruments, electronic
equipment and automation devices. Specifically, it can be used in
anti-theft alarm system, building intercom system, etc.
| Specification and technical data of 300/500V wire | | Cross-sectional area | Number of roots/diameter | Outer diameter | Conductor resistance at 20℃ | | 2*0.5 | 2*16/0.2 | 5.3 | 39 | | 2*0.75 | 2*24/0.2 | 6.5 | 26 | | 2*1.0 | 2*32/0.2 | 6.7 | 19.5 | | 2*1.5 | 2*30/0.25 | 7.7 | 13.3 | | 2*2.5 | 2*49/0.25 | 9.5 | 7.98 | | 2*4.0 | 2*56/0.3 | 11.2 | 4.95 | | 2*6.0 | 2*84/0.3 | 13.5 | 3.3 | | 3*0.5 | 3*16/0.2 | 5.6 | 39 | | 3*0.75 | 3*24/0.2 | 6.8 | 26 | | 3*1.0 | 3*32/0.2 | 7.2 | 19.5 | | 3*1.5 | 3*30/0.25 | 8.4 | 13.3 | | 3*2.5 | 3*49/0.25 | 10.3 | 7.98 | | 3*4.0 | 3*56/0.3 | 12.2 | 4.95 | | 3*6.0 | 3*84/0.3 | 13.2 | 3.3 | | 4*0.75 | 4*24/0.2 | 7.5 | 26 | | 4*1.0 | 4*32/0.2 | 8.1 | 19.5 | | 4*1.5 | 4*30/0.25 | 9.5 | 13.3 | | 4*2.5 | 4*49/0.25 | 11.3 | 7.98 | | 4*4.0 | 4*56/0.3 | 13.2 | 4.95 | | 4*6.0 | 4*84/0.3 | 15 | 3.3 | | 5*0.75 | 5*24/0.2 | 8.4 | 26 | | 5*1.0 | 5*32/0.2 | 8.8 | 19.5 | | 5*1.5 | 5*30/0.25 | 10.5 | 13.3 | | 5*2.5 | 5*49/0.25 | 12.6 | 7.98 | | 5*4.0 | 5*56/0.3 | 14.9 | 4.95 | | 5*6.0 | 5*84/0.3 | 16.4 | 3.3 |
|
       |
