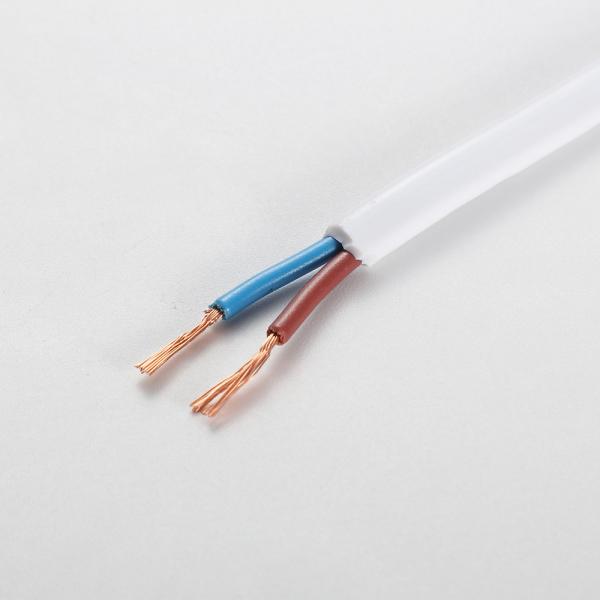

High quality environmental protection PVC 2 * 1.5mm ² Pure copper
insulated sheathed flat wire
Application:electric equipment, household, and electrical appliance
Standard: AS/NZS 5000.2
Conductor: AS/NZS 1125:2001, Stranded,annealed plain copper wire
Insulation: V-90 insulation
Operating Temperature: max 90deg C
Min Bending radius: 6 times cable diameter
Phase Core: red, white or blue
Neutral Core: black
Earth : green/yellow.
Specification and technical data of 300/500V wire
| | Cross-sectional area | Number of roots/diameter | Largest diameter | Conductor resistance at 20℃ | | 2*0.75 | 2*1/0.97 | 4.6*7 | 24.5 | | 2*1.0 | 2*1/1.13 | 4.8*7.4 | 18.1 | | 2*1.5 | 2*1/1.38 | 5.4*8.4 | 12.1 | | 2*2.5 | 2*1/1.78 | 6.2*9.8 | 7.41 | | 2*4.0 | 2*7/0.85 | 7.2*11.5 | 4.61 | | 2*6.0 | 2*7/1.04 | 8*13 | 3.08 | | 2*10 | 2*7/1.35 | 9.6*16 | 1.83 | | 3*0.75 | 3*1/0.97 | 4.6*9.4 | 24.5 | | 3*1.0 | 3*1/1.13 | 4.8*9.8 | 18.1 | | 3*1.5 | 3*1/1.38 | 5.4*11.5 | 12.1 | | 3*2.5 | 3*1/1.78 | 6.2*13.5 | 7.41 | | 3*4.0 | 3*7/0.85 | 7.4*16.5 | 4.61 | | 3*6.0 | 3*7/1.04 | 8*18 | 3.08 | | 3*10 | 3*7/1.35 | 9.6*22.5 | 1.83 |
|
|---|
      |
Company introduction
We are a wire factory located in Zhejiang Haiyan, China.
We have professional, high quality machines and testing equipment.
Main business Low voltage power cables, civil wires, audio cables,
fire alarm cables,Control cable and other more than 30 series of
products. The company's service purpose is Integrity-based,
customer satisfaction for the principle. We hope that in the near
future To work with you.
1. Q: Are you a factory or trading company?
A: We’re a factory locates in Zhejiang Province, which integrates
R&D, manufacture and sales of various wires and cables
2. Q: What are your main products?
A: AAC/AAAC/ACSR/ACAR/AACSR/ACSR-AS/ACSS/ACSS-AW/ACS/GSW conductor,
ABC cable, power cable, control cable, concentric
cable,commonelectric wire, etc
3. Q: Can we have our logo or company name to be printed on your
products or the package?
A: Yes, OEM and ODM are both acceptable for us.
4. Q: Do you provide samples? Free or not?
A: Yes, we’d like to provide free samples for your reference, but
won’t bear the express fees.
5. Q: How long is your warranty period?
A: 1 year, and we promise to return or replace the cables within
one year if any quality problem is found.
