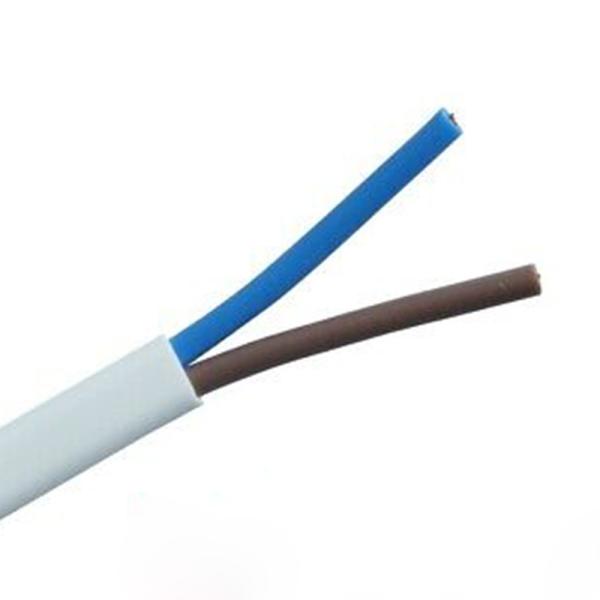

High quality oxygen free copper2*4.0mm ² Environmental protection
PVC insulated sheathed flat wire
APPLICATION
Domestic wiring cable. Can be installed in fixed installations in
dry or damp premises clipped to surface, on trays or in free air
where the risk of mechanical damage would not be an issue.Suitable
for laying in conduit or trunking where mechanical protection is
required.
Construction
a. Conductor
RE: 1mm² to 2.5mm²: Class 1 solid copper
RM: 4mm² to 16mm²: Class 2 stranded copper
b. Circuit Protection Conductor (Earth)
1mm² to 2.5mm²: Class 1 solid copper
4mm² to 16mm²: Class 2 stranded copper
c. Insulation
PVC (Polyvinyl Chloride)
d. Sheath
PVC (Polyvinyl Chloride)
e. Sheath Colour
Grey
Specification and technical data of 300/500V wire
| | Cross-sectional area | Number of roots/diameter | Largest diameter | Conductor resistance at 20℃ | | 2*0.75 | 2*1/0.97 | 4.6*7 | 24.5 | | 2*1.0 | 2*1/1.13 | 4.8*7.4 | 18.1 | | 2*1.5 | 2*1/1.38 | 5.4*8.4 | 12.1 | | 2*2.5 | 2*1/1.78 | 6.2*9.8 | 7.41 | | 2*4.0 | 2*7/0.85 | 7.2*11.5 | 4.61 | | 2*6.0 | 2*7/1.04 | 8*13 | 3.08 | | 2*10 | 2*7/1.35 | 9.6*16 | 1.83 | | 3*0.75 | 3*1/0.97 | 4.6*9.4 | 24.5 | | 3*1.0 | 3*1/1.13 | 4.8*9.8 | 18.1 | | 3*1.5 | 3*1/1.38 | 5.4*11.5 | 12.1 | | 3*2.5 | 3*1/1.78 | 6.2*13.5 | 7.41 | | 3*4.0 | 3*7/0.85 | 7.4*16.5 | 4.61 | | 3*6.0 | 3*7/1.04 | 8*18 | 3.08 | | 3*10 | 3*7/1.35 | 9.6*22.5 | 1.83 |
|
|---|
      |
Company introduction
We are a wire factory located in Zhejiang Haiyan, China.
We have professional, high quality machines and testing equipment.
Main business Low voltage power cables, civil wires, audio cables,
fire alarm cables,Control cable and other more than 30 series of
products. The company's service purpose is Integrity-based,
customer satisfaction for the principle. We hope that in the near
future To work with you.
1. Q: Are you a factory or trading company?
A: We’re a factory locates in Zhejiang Province, which integrates
R&D, manufacture and sales of various wires and cables
2. Q: What are your main products?
A: AAC/AAAC/ACSR/ACAR/AACSR/ACSR-AS/ACSS/ACSS-AW/ACS/GSW conductor,
ABC cable, power cable, control cable, concentric
cable,commonelectric wire, etc
3. Q: Can we have our logo or company name to be printed on your
products or the package?
A: Yes, OEM and ODM are both acceptable for us.
4. Q: Do you provide samples? Free or not?
A: Yes, we’d like to provide free samples for your reference, but
won’t bear the express fees.
5. Q: How long is your warranty period?
A: 1 year, and we promise to return or replace the cables within
one year if any quality problem is found.
