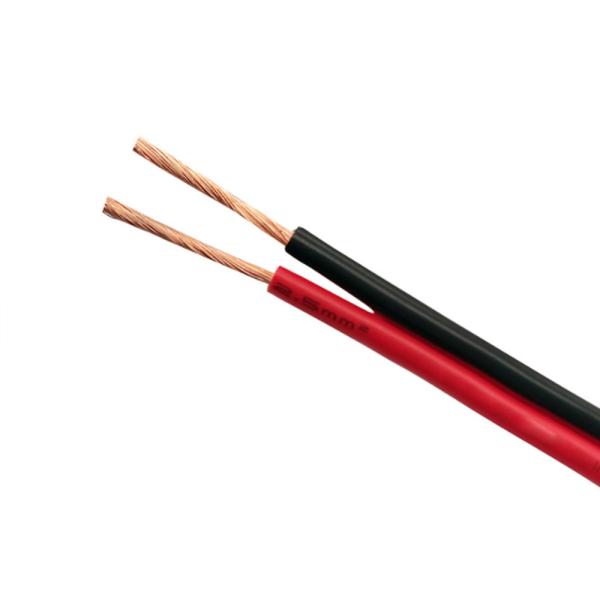

Sound cable 2 * 1.0mm ² Oxygen free copper conductor PVC insulated
red black wire
Quick Detail:
- Audio Speaker Cable
0.35mm2 0.50mm2 0.75mm2
1.00mm2 1.50mm2 2.00mm2 2.50mm2
Stranded Oxygen Free Copper Conductor
Flexible Quality PVC Jakcet
Red / Black Color
100M, 200M, Plastic Reel, Carton
Description:
KT1600 Audio Speaker Cable Oxygen Free Copper Conductor Flexible
PVC Jacket
Speaker Wire is used to make the electrical connection between
loudspeakers and audio amplifiers.
Modern speaker wire consists of two or more electrical conductors
individually insulated by plastic
(such as PVC, PE or Teflon) or, less commonly, rubber. The two
wires are electrically identical,
but are marked to identify the correct audio signal polarity. Most
commonly, speaker wire
comes in the form of zip cord.
| Number | Core number × nominal section mm² |
Conductor structureNO./mm | Insulation thickness rating Mm | Average outer diameter upper limit MM | 20℃Maximum conductor resistance MΩ/km | 70℃Minimum insulation resistance MΩ/km |
| 1 | 2×0.50 | 28/0.15 | 0.80 | 6.00 | 39.00 | 0.016 |
| 2 | 2×0.75 | 42/0.15 | 0.80 | 6.20 | 26.00 | 0.014 |
| 3 | 2×1.00 | 32/0.20 | 0.80 | 6.50 | 19.50 | 0.012 |
| 4 | 2×1.50 | 48/0.20 | 0.80 | 7.10 | 13.30 | 0.010 |
| 5 | 2×2.50 | 49/0.25 | 0.80 | 8.10 | 7.98 | 0.009 |
| 6 | 2×4.00 | 56/0.30 | 0.80 | 9.30 | 4.95 | 0.007 |
Company introduction
We are a wire factory located in Zhejiang Haiyan, China.
We have professional, high quality machines and testing equipment.
Main business Low voltage power cables, civil wires, audio cables,
fire alarm cables,Control cable and other more than 30 series of
products. The company's service purpose is Integrity-based,
customer satisfaction for the principle. We hope that in the near
future To work with you.
1. Q: Are you a factory or trading company?
A: We’re a factory locates in Zhejiang Province, which integrates
R&D, manufacture and sales of various wires and cables
2. Q: What are your main products?
A: AAC/AAAC/ACSR/ACAR/AACSR/ACSR-AS/ACSS/ACSS-AW/ACS/GSW conductor,
ABC cable, power cable, control cable, concentric
cable,commonelectric wire, etc
3. Q: Can we have our logo or company name to be printed on your
products or the package?
A: Yes, OEM and ODM are both acceptable for us.
4. Q: Do you provide samples? Free or not?
A: Yes, we’d like to provide free samples for your reference, but
won’t bear the express fees.
5. Q: How long is your warranty period?
A: 1 year, and we promise to return or replace the cables within
one year if any quality problem is found.
