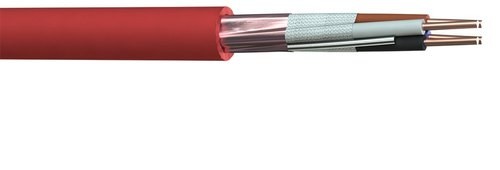

450V/750V Smoke Detector Cable , mildewproof Electrical Wire Fire
Resistant
Conductor : Class 1,2,5 Flexible Copper Conductor
Screen: Mica tape
Insulation: PVC or LSZH PO
Sheath:PVC: (Optional)
Rated Voltage : 450/750V
Applications:
These cables are used for installation in fire systems for
connecting fire alarms etc.
The cable can be installed in dry and moist areas as well for fixed
open air installation.
This cable type with electrostatic screening (St) protects the
transmission circuits
against extern-electrical interferences.
| corexsection mm2 | conductor structure | External diameter mm | Insulation thickness mm | Sheath thickness mm | Conductor resistance at 20 °C Ω/km | Specific. el. resistance of insulation at 70°C MΩkm | | 2x0.75 | 24x0.2 | 5.7-7.2 | 0.6 | 0.8 | 26.0 | 0.011 | | 2x1 | 32x0.2 | 5.9-7.5 | 0.6 | 0.8 | 19.5 | 0.010 | | 2x1.5 | 30x0.25 | 6.8-8.6 | 0.7 | 0.8 | 13.3 | 0.010 | | 2x2.5 | 50x0.25 | 8.4-10.6 | 0.8 | 1.0 | 7.98 | 0.0095 | | 3x0.75 | 24x0.2 | 6.0-7.6 | 0.6 | 0.8 | 26.0 | 0.011 | | 3x1 | 32x0.2 | 6.3-8.0 | 0.6 | 0.8 | 19.5 | 0.010 | | 3x1.5 | 30x0.25 | 7.4-9.4 | 0.7 | 0.9 | 13.3 | 0.010 | | 3x2.5 | 50x0.25 | 9.2-11.4 | 0.8 | 1.1 | 7.98 | 0.0095 | | 3x4 | 56x0.3 | 10.5-13.1 | 0.8 | 1.2 | 4.95 | 0.0078 | | 4x0.75 | 24x0.2 | 6.6-8.3 | 0.6 | 0.8 | 26.0 | 0.011 | | 4x1 | 32 x 0,20 | 7,1 - 09,0 | 0.6 | 0.9 | 19.5 | 0.010 | | 4x1.5 | 30 x 0,25 | 8,4 - 10,5 | 0.7 | 1.0 | 13,3 | 0,010 | | 4x2.5 | 50 x 0,25 | 10,1 - 12,5 | 0,8 | 1.1 | 7,98 | 0,0095 | | 4x4 | 56 x 0,30 | 11,5 - 14,3 | 0,8 | 1.2 | 4,95 | 0,0078 | | 4x6 | 84 x 0,30 | 14,7 | 0.8 | 1.2 | 3,30 | 0,0068 | | 5x0.75 | 24 x 0,20 | 7,4 - 9,3 | 0.6 | 0.9 | 26.0 | 0.011 | | 5x1 | 32 x 0,20 | 7,8 - 9,8 | 0.6 | 0.9 | 19.5 | 0,010 | | 5x1.5 | 30 x 0,25 | 9,3 - 11,6 | 0.7 | 1.1 | 13.3 | 0,010 | | 5x2.5 | 50 x 0,25 | 11,2 - 13,9 | 0.8 | 1.2 | 7,98 | 0,0095 |
|
|---|
Company introduction
We are a wire factory located in Zhejiang Haiyan, China.
We have professional, high quality machines and testing equipment.
Main business Low voltage power cables, civil wires, audio cables,
fire alarm cables,Control cable and other more than 30 series of
products. The company's service purpose is Integrity-based,
customer satisfaction for the principle. We hope that in the near
future To work with you.
1. Q: Are you a factory or trading company?
A: We’re a factory locates in Zhejiang Province, which integrates
R&D, manufacture and sales of various wires and cables
2. Q: What are your main products?
A: AAC/AAAC/ACSR/ACAR/AACSR/ACSR-AS/ACSS/ACSS-AW/ACS/GSW conductor,
ABC cable, power cable, control cable, concentric
cable,commonelectric wire, etc
3. Q: Can we have our logo or company name to be printed on your
products or the package?
A: Yes, OEM and ODM are both acceptable for us.
4. Q: Do you provide samples? Free or not?
A: Yes, we’d like to provide free samples for your reference, but
won’t bear the express fees.
5. Q: How long is your warranty period?
A: 1 year, and we promise to return or replace the cables within
one year if any quality problem is found.
