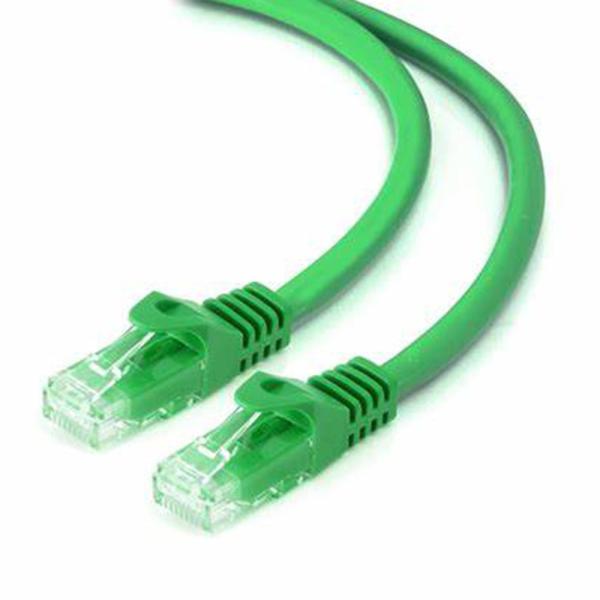

Cat 56e twisted pair for Cat 5 oxygen free copper unshielded
network cable and indoor computer network cable
Description:
The proliferation of broadband applications has prompted people to
demand more bandwidth.For example, a typical class-seven channel
can provide 862MHz bandwidth on one pair of lines to transmit video
signals, analogue audio signals on another pair, and high-speed LAN
information on the third and fourth line pairs.
Another difference between a Cat6 and a class seven system is their
structure. Cat6 cabling systems can use either UTP or STP Cat7
systems are only based on shielded cables.In Cat7 cables, each pair
of wires has a shield layer, and four pairs of wires together have
a common large shield layer. Physically, the additional shielding
gives the seven types of wires a larger wire diameter.
Another important difference is the ability to connect hardware.
The parameters of the seven types of systems require that all line
pairs provide at least 60dB of integrated near-end string winding
at 600MHz of the connector.However, the Cat5E system only requires
43dB at 100MHz, and the value of Cat6 at 250MHz is 46dB.
Mechanical
| Retention | 50 N (11 lbf) for 60±5 s |
| Mating cycle life | min 750 cycles |
| Tensile strength | ≥ 20 N per wire |
| Installation Temperature | 0°C to +60°C |
| Operating temperature | -20°C to +60°C |
| Minimum bend radius | 4 outer cable diameters |
| Boot Type | Any type of the above picture |
| Length | 0.3m-30m or As per requested |
| Color | Grey/Green/Blue/White/Black/Red/Yellow |
| Package | polybag or Blister Package |
Company introduction
We are a wire factory located in Zhejiang Haiyan, China.
We have professional, high quality machines and testing equipment.
Main business Low voltage power cables, civil wires, audio cables,
fire alarm cables,Control cable and other more than 30 series of
products. The company's service purpose is Integrity-based,
customer satisfaction for the principle. We hope that in the near
future To work with you.
1. Q: Are you a factory or trading company?
A: We’re a factory locates in Zhejiang Province, which integrates
R&D, manufacture and sales of various wires and cables
2. Q: What are your main products?
A: AAC/AAAC/ACSR/ACAR/AACSR/ACSR-AS/ACSS/ACSS-AW/ACS/GSW conductor,
ABC cable, power cable, control cable, concentric
cable,commonelectric wire, etc
3. Q: Can we have our logo or company name to be printed on your
products or the package?
A: Yes, OEM and ODM are both acceptable for us.
4. Q: Do you provide samples? Free or not?
A: Yes, we’d like to provide free samples for your reference, but
won’t bear the express fees.
5. Q: How long is your warranty period?
A: 1 year, and we promise to return or replace the cables within
one year if any quality problem is found.
