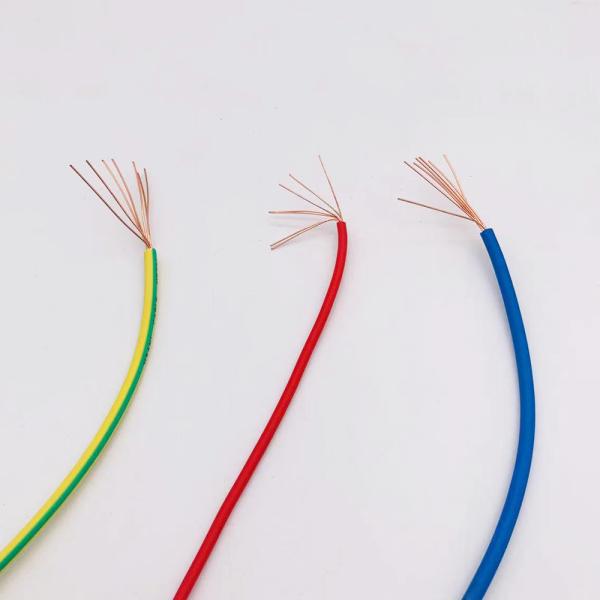

Pure copper flame retardant BV1 0 / 1.5 / 2.5 / 4.0 / 6.0m2
environmental protection PVC insulated wire
Application:
Mainly used in power lines, control lines and signal transmission
lines for electrical appliances, instrumentation, electronic
equipment and automation devices, specifically used in anti-theft
alarm systems, building intercom systems, etc.
Construction
Conductor: flexible conductor class5 (GB/T 3956 class 5 or
IEC60228.5)
Core number: 2core to 41core
Insulation: compound PVC
Outer sheath:compound PVC
Rated voltage
300/500V (GB/T5023.3-2008 or 60227 IEC52)
Service temperature: -30~ +70℃
Bending radius: 15D
Packaging: 100m/roll or as request
Specification and technical data of 450/750V wire
| Cross-sectional area
| Number of roots/diameter
| Largest diameter
| Conductor resistance at 20℃
| | 0.5 | 1/0.8 | 2.7 | 36 | | 0.75 | 1/0.97 | 2.8 | 24.5 | | 1 | 1/1.13 | 3 | 18.1 | | 1.5(A) | 1/1.38 | 3.3 | 12.1 | | 1.5(B) | 7/0.52 | 3.5 | 12.1 | | 2.5(A) | 1/1.78 | 3.9 | 7.41 | | 2.5(B) | 7/0.68 | 4.2 | 7.41 | | 4.0(A) | 1/2.25 | 4.4 | 4.61 | | 4.0(B) | 7/0.85 | 4.8 | 4.61 | | 6.0(A) | 1/2.75 | 4.9 | 3.08 | | 6.0(B) | 7/1.04 | 5.4 | 3.08 | | 10 | 7/1.35 | 7 | 1.83 | | 16 | 7/1.7 | 8 | 1.15 | | 25 | 7/2.14 | 10 | 0.727 | | 35 | 7/2.52 | 11.5 | 0.524 | | 50 | 19/1.78 | 13 | 0.387 | | 70 | 19/2.14 | 15 | 0.268 | | 95 | 19/2.52 | 17.5 | 0.193 | | 120 | 37/2.03 | 19 | 0.153 | | 150 | 37/2.25 | 21 | 0.124 | | 185 | 37/2.52 | 23.5 | 0.0991 | | 240 | 61/2.25 | 26.5 | 0.0754 | | 300 | 61/2.52 | 29.5 | 0.0601 | | 400 | 61/2.85 | 33 | 0.047 |
|
|---|
|
Company introduction
We are a wire factory located in Zhejiang Haiyan, China.
We have professional, high quality machines and testing equipment.
Main business Low voltage power cables, civil wires, audio cables,
fire alarm cables,Control cable and other more than 30 series of
products. The company's service purpose is Integrity-based,
customer satisfaction for the principle. We hope that in the near
future To work with you.
1. Q: Are you a factory or trading company?
A: We’re a factory locates in Zhejiang Province, which integrates
R&D, manufacture and sales of various wires and cables
2. Q: What are your main products?
A: AAC/AAAC/ACSR/ACAR/AACSR/ACSR-AS/ACSS/ACSS-AW/ACS/GSW conductor,
ABC cable, power cable, control cable, concentric
cable,commonelectric wire, etc
3. Q: Can we have our logo or company name to be printed on your
products or the package?
A: Yes, OEM and ODM are both acceptable for us.
4. Q: Do you provide samples? Free or not?
A: Yes, we’d like to provide free samples for your reference, but
won’t bear the express fees.
5. Q: How long is your warranty period?
A: 1 year, and we promise to return or replace the cables within
one year if any quality problem is found.
