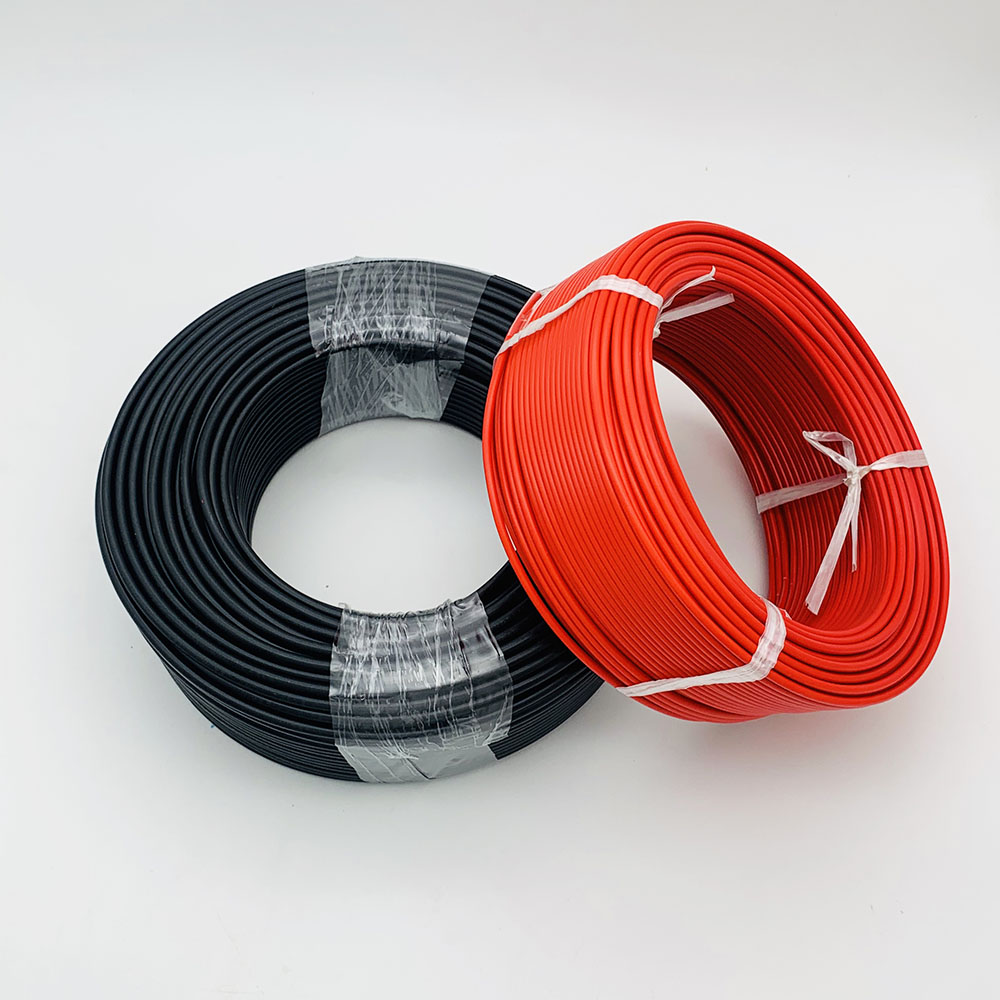

Flame retardant BV 1.5/2.5/4/6 square single strand copper wire /
single core hard wire / lighting socket wire
Product Description
BVR/BV wire is suitable for fixed laying of power equipment with
rated ac voltage of 450/750v and below.
Such as home lighting.Fixed wiring can be used for indoor lighting,
pipe piercing and other occasions.In order to facilitate the
difference in installation process, can be divided into
yellow,red,blue, green, black, white, double seven colors.

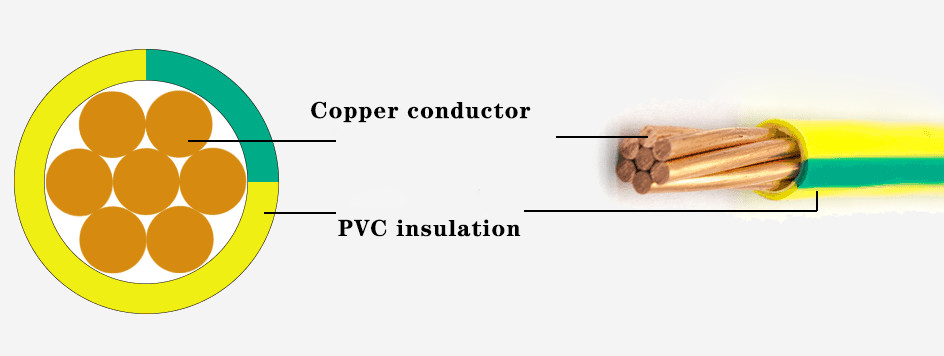

Product structure:
conductor + insulation.The main material of the conductor is mostly
anaerobic copper, which is composed of multiple strands
of copper wire, and the insulation is PVC.
Working temperature:
normal work does not exceed 70 ℃, the maximum temperature BVR - 105
highest working temperature
is 105 ℃, wire temperature under installation should not below 0 ℃.
Application:
Mainly used in machinery and equipment internal wiring, home
decoration wiring. It is used in household
electrical appliances, instruments and telecommunications
equipment.
Specification and technical data of 450/750V wire
| Cross-sectional area
| Number of roots/diameter
| Largest diameter
| Conductor resistance at 20℃
| | 0.5 | 1/0.8 | 2.7 | 36 | | 0.75 | 1/0.97 | 2.8 | 24.5 | | 1 | 1/1.13 | 3 | 18.1 | | 1.5(A) | 1/1.38 | 3.3 | 12.1 | | 1.5(B) | 7/0.52 | 3.5 | 12.1 | | 2.5(A) | 1/1.78 | 3.9 | 7.41 | | 2.5(B) | 7/0.68 | 4.2 | 7.41 | | 4.0(A) | 1/2.25 | 4.4 | 4.61 | | 4.0(B) | 7/0.85 | 4.8 | 4.61 | | 6.0(A) | 1/2.75 | 4.9 | 3.08 | | 6.0(B) | 7/1.04 | 5.4 | 3.08 | | 10 | 7/1.35 | 7 | 1.83 | | 16 | 7/1.7 | 8 | 1.15 | | 25 | 7/2.14 | 10 | 0.727 | | 35 | 7/2.52 | 11.5 | 0.524 | | 50 | 19/1.78 | 13 | 0.387 | | 70 | 19/2.14 | 15 | 0.268 | | 95 | 19/2.52 | 17.5 | 0.193 | | 120 | 37/2.03 | 19 | 0.153 | | 150 | 37/2.25 | 21 | 0.124 | | 185 | 37/2.52 | 23.5 | 0.0991 | | 240 | 61/2.25 | 26.5 | 0.0754 | | 300 | 61/2.52 | 29.5 | 0.0601 | | 400 | 61/2.85 | 33 | 0.047 |
|
|---|
|
Company introduction
We are a wire factory located in Zhejiang Haiyan, China.
We have professional, high quality machines and testing equipment.
Main business Low voltage power cables, civil wires, audio cables,
fire alarm cables,Control cable and other more than 30 series of
products. The company's service purpose is Integrity-based,
customer satisfaction for the principle. We hope that in the near
future To work with you.
1. Q: Are you a factory or trading company?
A: We’re a factory locates in Zhejiang Province, which integrates
R&D, manufacture and sales of various wires and cables
2. Q: What are your main products?
A: AAC/AAAC/ACSR/ACAR/AACSR/ACSR-AS/ACSS/ACSS-AW/ACS/GSW conductor,
ABC cable, power cable, control cable, concentric
cable,commonelectric wire, etc
3. Q: Can we have our logo or company name to be printed on your
products or the package?
A: Yes, OEM and ODM are both acceptable for us.
4. Q: Do you provide samples? Free or not?
A: Yes, we’d like to provide free samples for your reference, but
won’t bear the express fees.
5. Q: How long is your warranty period?
A: 1 year, and we promise to return or replace the cables within
one year if any quality problem is found.
