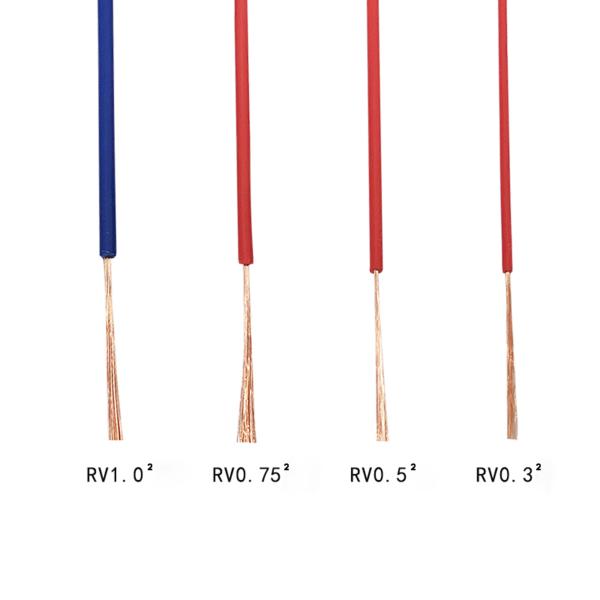

RV0. 75mm ² High quality oxygen free copper multi conductor
environment-friendly PVC insulated wire
RV Cable Application:
RV cable is widely used in industrial distribution field. It is
especially suitable for flexible installation places with stricter
requirements, such as electronic control cabinets, distribution
boxes and various low-voltage electrical equipment. It can be used
for transmission of power, electrical control signals and switching
signals. RV wire and cable are designed with soft structure. The
bending radius of conductor is small, and it is suitable for wet
and oily installation places.
RV Cable Construction characteristics
Conductor: flexible conductor class 5 (China GB/T 3956 class 5 or
IEC60228 class 5)
Insulation: PVC
Rated voltage and standard:
450/750V 60227 IEC02 or GB/T5023.3-2008
Minimum service temperature: - 30 C
Maximum service temperature available +70 °C, +90 °C, +105 °C
Packaging: 100m/roll or as request
Specification and technical data of 450/750V wire
| Cross-sectional area
| Number of roots/diameter
| Largest diameter
| Conductor resistance at 20℃
| | 0.5 | 1/0.8 | 2.7 | 36 | | 0.75 | 1/0.97 | 2.8 | 24.5 | | 1 | 1/1.13 | 3 | 18.1 | | 1.5(A) | 1/1.38 | 3.3 | 12.1 | | 1.5(B) | 7/0.52 | 3.5 | 12.1 | | 2.5(A) | 1/1.78 | 3.9 | 7.41 | | 2.5(B) | 7/0.68 | 4.2 | 7.41 | | 4.0(A) | 1/2.25 | 4.4 | 4.61 | | 4.0(B) | 7/0.85 | 4.8 | 4.61 | | 6.0(A) | 1/2.75 | 4.9 | 3.08 | | 6.0(B) | 7/1.04 | 5.4 | 3.08 | | 10 | 7/1.35 | 7 | 1.83 | | 16 | 7/1.7 | 8 | 1.15 | | 25 | 7/2.14 | 10 | 0.727 | | 35 | 7/2.52 | 11.5 | 0.524 | | 50 | 19/1.78 | 13 | 0.387 | | 70 | 19/2.14 | 15 | 0.268 | | 95 | 19/2.52 | 17.5 | 0.193 | | 120 | 37/2.03 | 19 | 0.153 | | 150 | 37/2.25 | 21 | 0.124 | | 185 | 37/2.52 | 23.5 | 0.0991 | | 240 | 61/2.25 | 26.5 | 0.0754 | | 300 | 61/2.52 | 29.5 | 0.0601 | | 400 | 61/2.85 | 33 | 0.047 |
|
|---|
|
Company introduction
We are a wire factory located in Zhejiang Haiyan, China.
We have professional, high quality machines and testing equipment.
Main business Low voltage power cables, civil wires, audio cables,
fire alarm cables,Control cable and other more than 30 series of
products. The company's service purpose is Integrity-based,
customer satisfaction for the principle. We hope that in the near
future To work with you.
1. Q: Are you a factory or trading company?
A: We’re a factory locates in Zhejiang Province, which integrates
R&D, manufacture and sales of various wires and cables
2. Q: What are your main products?
A: AAC/AAAC/ACSR/ACAR/AACSR/ACSR-AS/ACSS/ACSS-AW/ACS/GSW conductor,
ABC cable, power cable, control cable, concentric
cable,commonelectric wire, etc
3. Q: Can we have our logo or company name to be printed on your
products or the package?
A: Yes, OEM and ODM are both acceptable for us.
4. Q: Do you provide samples? Free or not?
A: Yes, we’d like to provide free samples for your reference, but
won’t bear the express fees.
5. Q: How long is your warranty period?
A: 1 year, and we promise to return or replace the cables within
one year if any quality problem is found.
