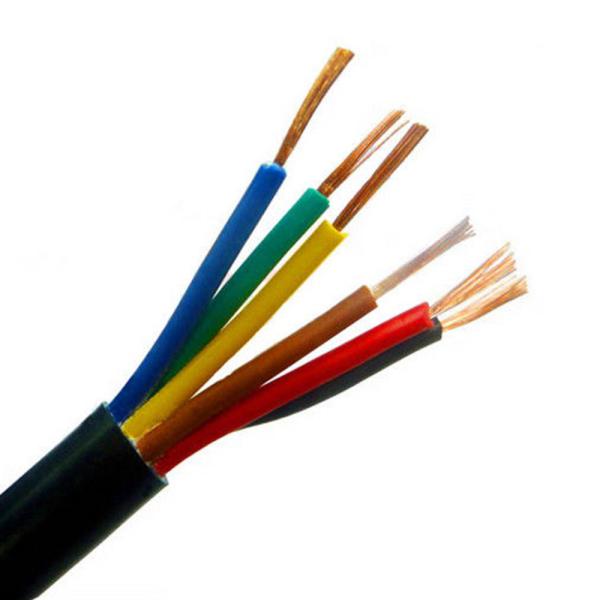

Pure copper rvv6 / 7 / 8-core power cord environmental protection
PVC sheathed cord flexible wire
Copper core PVC insulated electric cable is a fine and ideal cable with conductor of plain annealed copper
wires,solid or stranded.These cables are used for general
purpose,as building wire for power, lighting and control wire to
electrical appliances,suitable for use in conduit and for
fixed,protected installation. The cable can be of flame
ratardance,fire resistance and other property.
Main of cables features
1, Uo/U is 300/500,
2, Long-term allowable temperature of the cable:The allowable
temperature of 70 Cable should not exceed 70℃, the allowable
temperature of other models should not exceed 70℃.
3. H05VV-F has a temperature resistance rating of up to 70°C and
can be used for more than 30 years. It has the characteristics of
acid and alkali resistance, oil resistance, moisture resistance,
mildew resistance, electrical insulation, and abrasion resistance.
Application
Suitable for use in conduit and for fixed, protected installation
of Wiring Burglar Alarm, Public Address Systems,
Intercoms, Telephone Stations, Speakers, Instrumentation, Control
and other Low Voltage Circuits that are Power- Limited and
anti-interference
- Product Name: RVV cable, RVV wire and cable
- Rated voltage: 300V / 500V.
- Conductor: stranded copper conductor
- Insulation: polyvinyl chloride mixture (PVC).
- Sheath: flexible polyvinyl chloride mixture (PVC)
- Number of cores: 2-5 cores, 7-36 cores (products outside CCC
catalogue, without CCC certification).
- Sectional area: 0.75-2.5mm & sup2;, 0.5,2.5-35mm²
(products outside CCC catalogue, no CCC certification).
- Test voltage: 2000V, 5min.
- Insulation resistance: > 200m Ω × KM.
- Service temperature: - 30 ~ + 70 ℃.
- Package specification: 100M, 500m, 1000m.
- Purpose: it is mainly used in power line, control line and signal
transmission for electrical appliances, instruments, electronic
equipment and automation devices. Specifically, it can be used in
anti-theft alarm system, building intercom system, etc.
| Specification and technical data of 300/500V wire | | Cross-sectional area | Number of roots/diameter | Outer diameter | Conductor resistance at 20℃ | | 2*0.5 | 2*16/0.2 | 5.3 | 39 | | 2*0.75 | 2*24/0.2 | 6.5 | 26 | | 2*1.0 | 2*32/0.2 | 6.7 | 19.5 | | 2*1.5 | 2*30/0.25 | 7.7 | 13.3 | | 2*2.5 | 2*49/0.25 | 9.5 | 7.98 | | 2*4.0 | 2*56/0.3 | 11.2 | 4.95 | | 2*6.0 | 2*84/0.3 | 13.5 | 3.3 | | 3*0.5 | 3*16/0.2 | 5.6 | 39 | | 3*0.75 | 3*24/0.2 | 6.8 | 26 | | 3*1.0 | 3*32/0.2 | 7.2 | 19.5 | | 3*1.5 | 3*30/0.25 | 8.4 | 13.3 | | 3*2.5 | 3*49/0.25 | 10.3 | 7.98 | | 3*4.0 | 3*56/0.3 | 12.2 | 4.95 | | 3*6.0 | 3*84/0.3 | 13.2 | 3.3 | | 4*0.75 | 4*24/0.2 | 7.5 | 26 | | 4*1.0 | 4*32/0.2 | 8.1 | 19.5 | | 4*1.5 | 4*30/0.25 | 9.5 | 13.3 | | 4*2.5 | 4*49/0.25 | 11.3 | 7.98 | | 4*4.0 | 4*56/0.3 | 13.2 | 4.95 | | 4*6.0 | 4*84/0.3 | 15 | 3.3 | | 5*0.75 | 5*24/0.2 | 8.4 | 26 | | 5*1.0 | 5*32/0.2 | 8.8 | 19.5 | | 5*1.5 | 5*30/0.25 | 10.5 | 13.3 | | 5*2.5 | 5*49/0.25 | 12.6 | 7.98 | | 5*4.0 | 5*56/0.3 | 14.9 | 4.95 | | 5*6.0 | 5*84/0.3 | 16.4 | 3.3 |
|
       |
about us
We are a wire factory located in Zhejiang Haiyan, China.
We have professional, high quality machines and testing equipment.
Main business Low voltage power cables, civil wires, audio cables,
fire alarm cables,Control cable and other more than 30 series of
products.
The company's service purpose is Integrity-based, customer
satisfaction for the principle.
We hope that in the near future To work with you.
1. Q: Are you a factory or trading company?
A: We’re a factory locates in Zhejiang Province, which integrates
R&D, manufacture and sales of various wires and cables
2. Q: What are your main products?
A: AAC/AAAC/ACSR/ACAR/AACSR/ACSR-AS/ACSS/ACSS-AW/ACS/GSW conductor,
ABC cable, power cable, control cable, concentric
cable,commonelectric wire, etc
3. Q: Can we have our logo or company name to be printed on your
products or the package?
A: Yes, OEM and ODM are both acceptable for us.
4. Q: Do you provide samples? Free or not?
A: Yes, we’d like to provide free samples for your reference, but
won’t bear the express fees.
5. Q: How long is your warranty period?
A: 1 year, and we promise to return or replace the cables within
one year if any quality problem is found.
