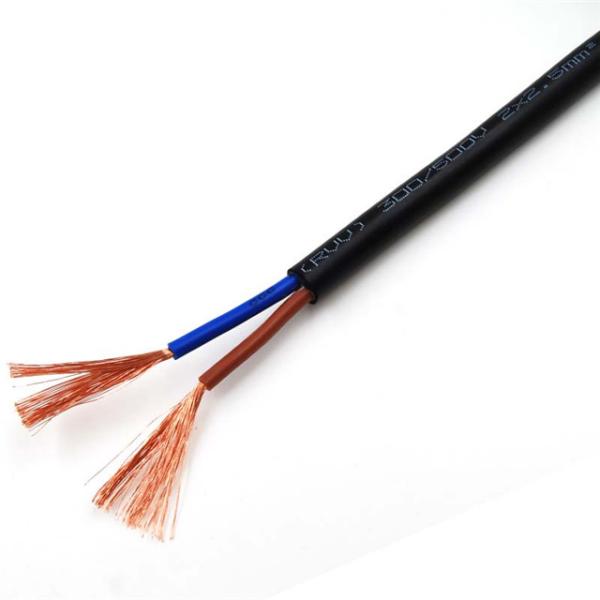

Copper core wire RVV 2-core *1/ 1.5 /2.5 /4 square power jacket control installation cable

Flexible Electrical Cable

This cable is suitable for industrial and home applications. It is designed for dry, moist and wet open areas as wellas under plaster,

walling and concrete. However, it is not recommended to lay the cable into the compacted concerete. Outerapplication is permitted

only in the case that cable is not exposed to direct sunlights.

Flexible Electrical Cable Application

Applicable to the cables and wires of rated yolatage 450/750V and less than 450/750V AC for power
plant, householdelectrical applance,insurment and telecommunication equipment.
copper cable electric cable wire

• Product Name: RVV cable, RVV wire and cable
• Rated voltage: 300V / 500V.
• Conductor: stranded copper conductor
• Insulation: polyvinyl chloride mixture (PVC).
• Sheath: flexible polyvinyl chloride mixture (PVC)
• Number of cores: 2-5 cores, 7-36 cores (products outside CCC catalogue, without CCC certification).
• Sectional area: 0.75-2.5mm & sup2;, 0.5,2.5-35mm² (products outside CCC catalogue, no CCC certification).
• Test voltage: 2000V, 5min.
• Insulation resistance: > 200m Ω × KM.
• Service temperature: - 30 ~ + 70 ℃.
• Package specification: 100M, 500m, 1000m.
• Purpose: it is mainly used in power line, control line and signal transmission for electrical appliances, instruments, electronic equipment and automation devices. Specifically, it can be used in anti-theft alarm system, building intercom system, etc.

Specification and technical data of 300/500V wire Cross-sectional area Number of roots/diameter Outer diameter Conductor resistance at 20℃ 2*0.5 2*16/0.2 5.3 39 2*0.75 2*24/0.2 6.5 26 2*1.0 2*32/0.2 6.7 19.5 2*1.5 2*30/0.25 7.7 13.3 2*2.5 2*49/0.25 9.5 7.98 2*4.0 2*56/0.3 11.2 4.95 2*6.0 2*84/0.3 13.5 3.3 3*0.5 3*16/0.2 5.6 39 3*0.75 3*24/0.2 6.8 26 3*1.0 3*32/0.2 7.2 19.5 3*1.5 3*30/0.25 8.4 13.3 3*2.5 3*49/0.25 10.3 7.98 3*4.0 3*56/0.3 12.2 4.95 3*6.0 3*84/0.3 13.2 3.3 4*0.75 4*24/0.2 7.5 26 4*1.0 4*32/0.2 8.1 19.5 4*1.5 4*30/0.25 9.5 13.3 4*2.5 4*49/0.25 11.3 7.98 4*4.0 4*56/0.3 13.2 4.95 4*6.0 4*84/0.3 15 3.3 5*0.75 5*24/0.2 8.4 26 5*1.0 5*32/0.2 8.8 19.5 5*1.5 5*30/0.25 10.5 13.3 5*2.5 5*49/0.25 12.6 7.98 5*4.0 5*56/0.3 14.9 4.95 5*6.0 5*84/0.3 16.4 3.3
