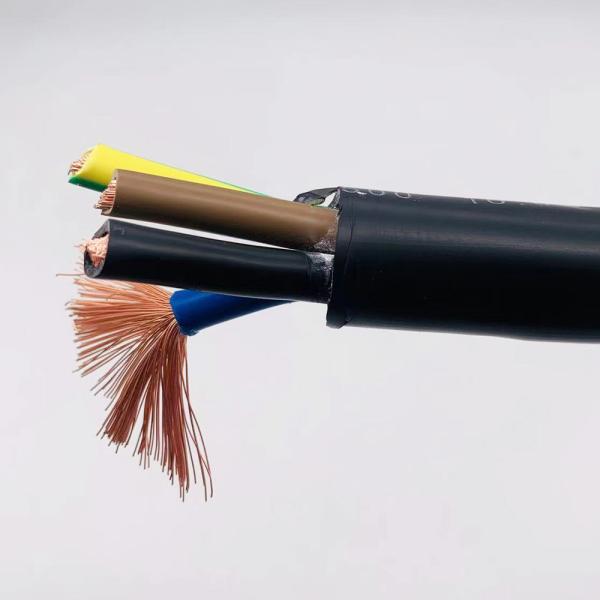

4-core environment-friendly insulated PVC round sheathed cable and high-quality PVC flexible wire

• Product Name: RVV cable, RVV wire and cable
• Rated voltage: 300V / 500V.
• Conductor: stranded copper conductor
• Insulation: polyvinyl chloride mixture (PVC).
• Sheath: flexible polyvinyl chloride mixture (PVC)
• Number of cores: 2-5 cores, 7-36 cores (products outside CCC catalogue, without CCC certification).
• Sectional area: 0.75-2.5mm & sup2;, 0.5,2.5-35mm² (products outside CCC catalogue, no CCC certification).
• Test voltage: 2000V, 5min.
• Insulation resistance: > 200m Ω × KM.
• Service temperature: - 30 ~ + 70 ℃.
• Package specification: 100M, 500m, 1000m.
• Purpose: it is mainly used in power line, control line and signal transmission for electrical appliances, instruments, electronic equipment and automation devices. Specifically, it can be used in anti-theft alarm system, building intercom system, etc.

Specification and technical data of 300/500V wire Cross-sectional area Number of roots/diameter Outer diameter Conductor resistance at 20℃ 2*0.5 2*16/0.2 5.3 39 2*0.75 2*24/0.2 6.5 26 2*1.0 2*32/0.2 6.7 19.5 2*1.5 2*30/0.25 7.7 13.3 2*2.5 2*49/0.25 9.5 7.98 2*4.0 2*56/0.3 11.2 4.95 2*6.0 2*84/0.3 13.5 3.3 3*0.5 3*16/0.2 5.6 39 3*0.75 3*24/0.2 6.8 26 3*1.0 3*32/0.2 7.2 19.5 3*1.5 3*30/0.25 8.4 13.3 3*2.5 3*49/0.25 10.3 7.98 3*4.0 3*56/0.3 12.2 4.95 3*6.0 3*84/0.3 13.2 3.3 4*0.75 4*24/0.2 7.5 26 4*1.0 4*32/0.2 8.1 19.5 4*1.5 4*30/0.25 9.5 13.3 4*2.5 4*49/0.25 11.3 7.98 4*4.0 4*56/0.3 13.2 4.95 4*6.0 4*84/0.3 15 3.3 5*0.75 5*24/0.2 8.4 26 5*1.0 5*32/0.2 8.8 19.5 5*1.5 5*30/0.25 10.5 13.3 5*2.5 5*49/0.25 12.6 7.98 5*4.0 5*56/0.3 14.9 4.95 5*6.0 5*84/0.3 16.4 3.3

Haiyan Hetai Cable Co., Ltd. was established in 2008. We are a wire factory in Haiyan, Zhejiang, China. Our company is committed to R & D and production of various wires and cables, including indoor cloth wires, red and black wires, network cables, flexible cables, etc. The company has CCC, CE and other national certification certificates. A full set of advanced testing equipment ensures that every link from raw materials to perfect products is effectively controlled. It has established long-term strategic cooperative relations with many telecom operators at home and abroad. The products are widely sold to the Middle East, Africa, Southeast Asia and other continents. The company adheres to the quality policy of "fast, efficient and high-quality" and the quality goal of "China first and world-class", and strives to make outstanding contributions to the development of global cable industry.
